Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp

Brand Name : ChuangYi

Model Number : CBC-3T

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1 Set

Price : negotiation

Payment Terms : L/C, T/T, Western Union, Cash

Delivery Time : 90days

Packaging Details : Export Standar Packing

Color : Milky White

Raw Material : Virgin Pulp, Wood Pulp, Surgarcane Bagasse Plate, Virgin Pulp

Automation : Semi-automatic (Fully Automatic with Robot)

Mould Plate Size : 1100*800mm

Forming Method : Vacuum Suction

Control Method : PLC and Touch Screen

Heating Type : Thermal Oil or Electric

Capacity : 3-5tons per day

Guarantee Period : 1 Year

Contact Now

Biodegradable Sugarcane Bagasse Plates Making Machine Virgin Pulp Wood Pulp



Biodegradable Pulp Disposable Tableware Machine:



(1) The forming machine is semi-automatic forming system, but by using robots to be fully automatic, as the robot will transfer          the products to be hot pressing, edge cutting.



(2) The raw material is virgin paper plate, sugarcane bagasse pulp, straw pulp, bamboo pulp,etc.



(3) One forming part in the middle, and two hot press parts on the two sides.



(4) It applies to all kinds of paper pulp tableware products, medical care products, paper pulp mask and high-quality goods              packaging.



Specifications:



  Product name  Degradable pulp molding dishware
  Model  CBC-3T
  Capacity  120~220 kgs per hour
  Mould Plate size  1100*800mm
  Forming method   Vacuum suction
  Control method   PLC and touch screen
  Workshop Requirement   1500㎡
  Pulp tank material   Stainless steel 304
  Electricity consumption   170~195 KWH (280 kw installed)
  Water consumption   300-500kgs/h
  Fuel consumption

  Fuel consumption

  if heat by conduction oil

  Natural gas 45~55 m3/h

  conduction oil boiler     required: thermal power    660000kcal/h

  Electricity consumption

  if heat by conduction oil

   170~195 KWH (280 kw    installed)
  Chemical for Water       Resistance   5~8 kg/h
  Chemical for Oil     Resistance   1.2~2 kg/h
  Operator Required   16~17 people/shift



Schematic Diagram:



Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp

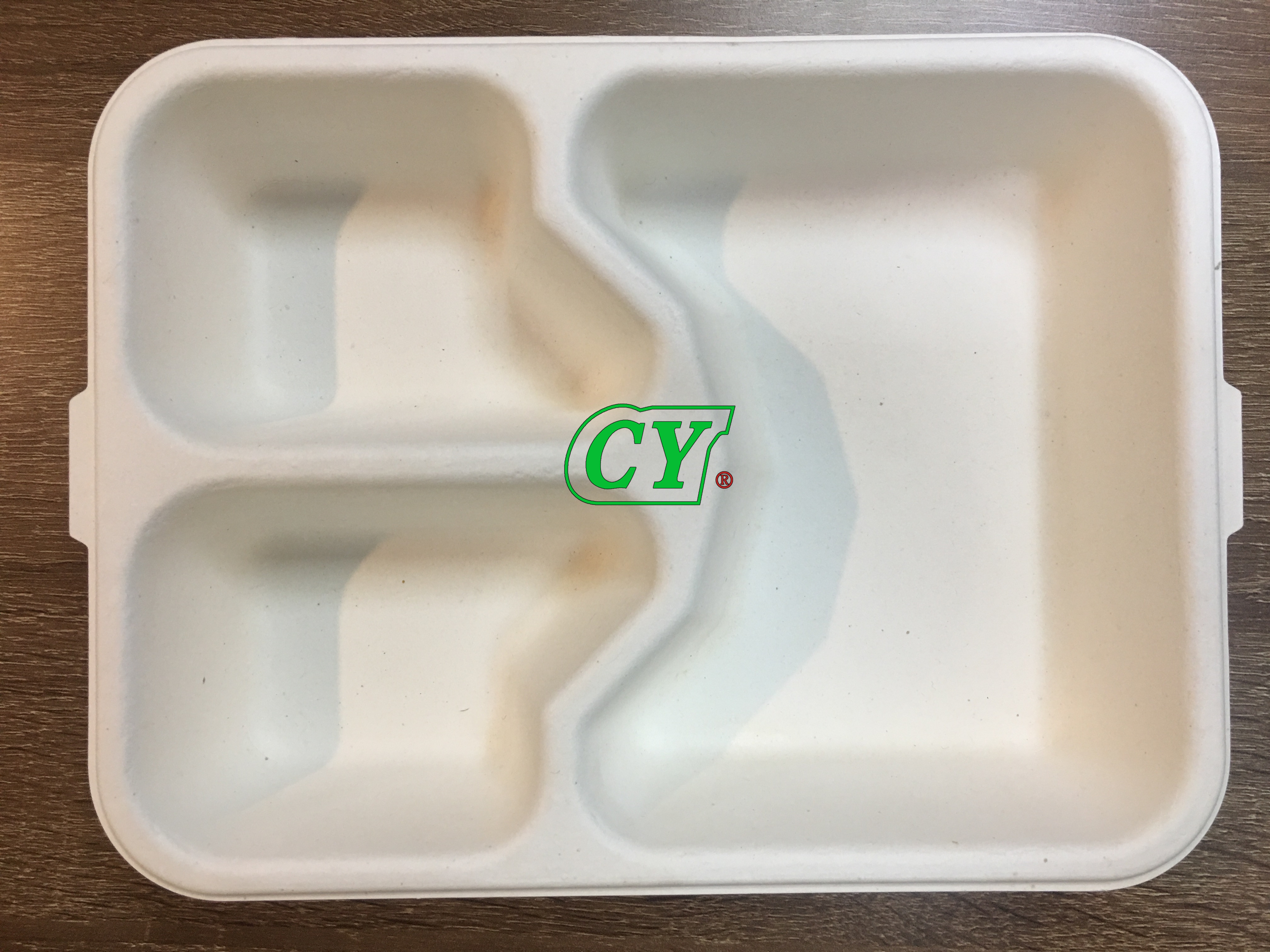

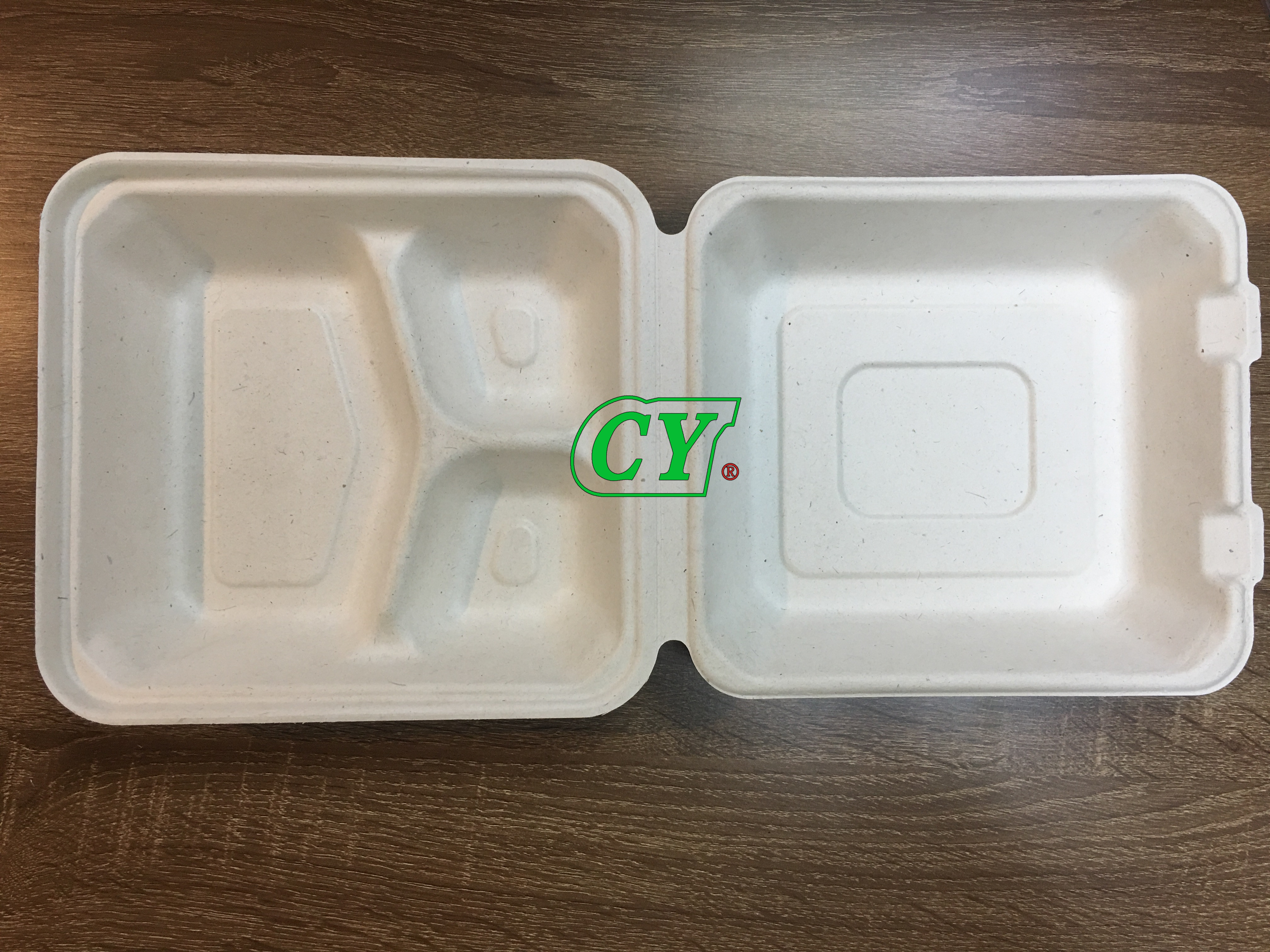

Applications:



                 Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp





                Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp





                Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
